“水予以万物翅膀…… 唯有在水中，我们才能真实地感受到空间之三维。”   —— 查尔斯·摩尔

“Water gives things wings… Only in water can we truly grasp the three-dimensionality of space.”   —— Charles Moore

新光天地是台湾新光三越集团与重庆中渝物业发展有限公司合作打造的商业体，位于重庆渝北区的嘉州商圈，是重庆主城区的核心商圈，是集商政、金融、居住及交通的核心。

SHINKONG-PLACE is a commercial body created by Taiwan Shin Kong Mitsukoshi Group in cooperation with Chongqing Zhongyu Property Development Co., Ltd. The place is located in Jiazhou business circle in Yubei District of Chongqing, is the core business circle of downtown area in Chongqing, and is the core of integrating business administration, finance, housing and transportation.

素水设计致力于将水景艺术与喷泉技术进行完美结合，专注于水景设计咨询和水景艺术品服务。本文将从设计，艺术和技术三个方面与大家分享我们项目中三个不同水景。

Sushui Design strives to the perfect combination of waterscape art and fountain technology, focuses on waterscape design consulting and waterscape art service. This article will share with everyone three different waterscapes in our project from three aspects of design, art and technology.

▼广场一览 View of squares

旱喷，位于商业中庭核心区域能量广场。针对此水景我们希望提出一个完美的解决方案，可以兼顾艺术与技术的平衡。在安全，节能和环保的前提下，将水的灵动与美丽展现于景观环境中，给全硬质铺装的广场注入灵气与活力。

Dry fountain, located in the energy square, where is the core area of the commercial atrium. In view of this water-scape, we hope to put forward a perfect solution, which can balance art and technology. On the premise of safety, energy conservation and environmental protection, the flexibility and beauty of water will be presented in the landscape environment, inject aura and vitality into the square paved with hard materials.

· 水景的艺术 The Art of Waterscape

1、直喷 Vertical jet

采用透明水柱的直喷使得整个广场空间通透清亮，水柱不会阻塞视线影响交通流线。同时，透明水柱的直喷喷射压力更小，安全性能高。

The vertical jet of transparent water column makes the whole square space transparent and bright, and the water column will not block the sight line and affect the traffic streamline. At the same time, the vertical jet pressure of the transparent water column is smaller and the safety performance is high.

▼直喷喷泉 Vertical jet

在结合灯光音乐后，会形成一条条彼此独立但又能配合整体变化的水线。

After the combination of light and music, water lines will be formed that are independent of each other, but can match the overall change.

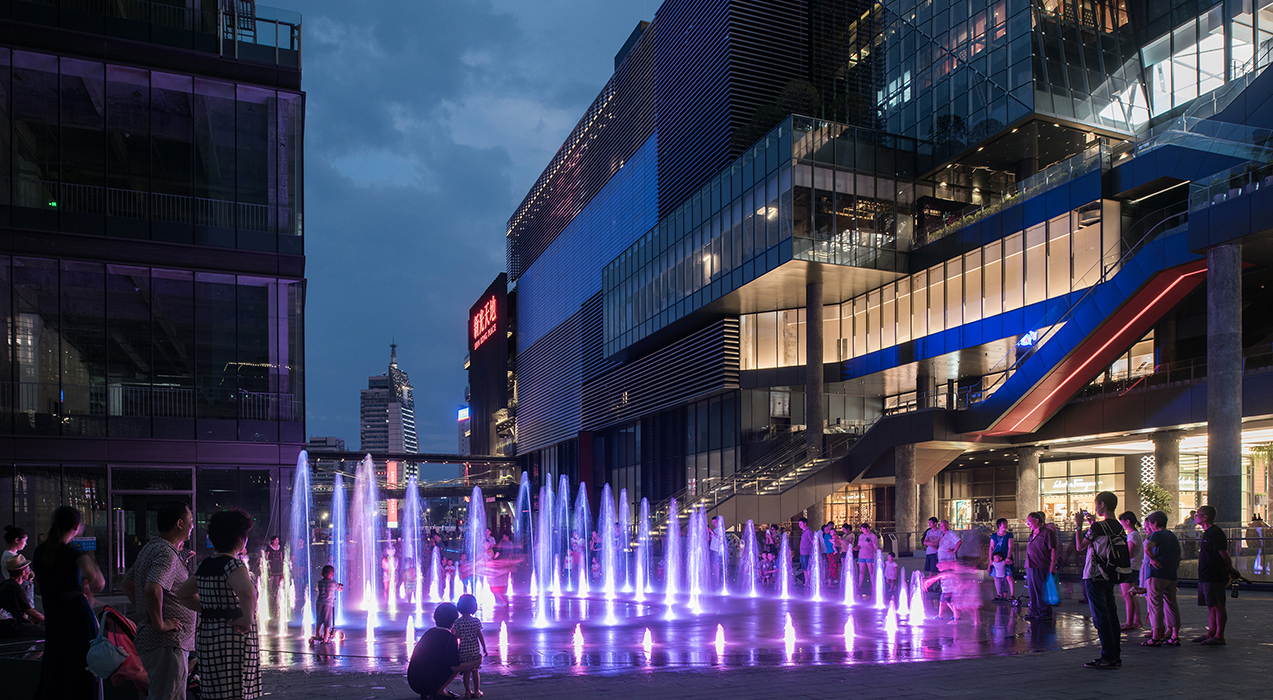

▼夜间效果 Night View

2、跳泉 Jumping jets

跳泉以自然的抛物线形式向广场中心聚集相较于直喷，跳泉可以更加亲近地与人产生联系。

Jumping jets gather in the center of the square in the form of natural parabolas, and can be more closely related to people than direct injection.

▼跳泉与小朋友的互动 Interaction between jets and children

▼跳泉 Jumping jets

3、雾效 Fog Effect

我们将雾效设备隐藏于广场外圈的截水沟中，保持了地面平面的整洁清爽。在夏日，水雾在为广场降温的同时，还能在夜间结合灯光晕染色彩。

We hid the fog effect equipment in the intercepting ditch on the outer circle of the square, keeping the clean and fresh of ground. In summer, water mist can cool the square and at the same time, it can also combine with lights to bloom colors at night.

▼白天的雾效 Fog effect during day

▼夜间结合灯光的雾效 Fog effect of combining lighting with night

4、细节 Details

▼涌泉 Foam jets

▼涌泉与小朋友的互动 Interaction between foam jets and children

· 喷泉的技术 Technology of Fountain

安全 – 创新 – 节能 Safety – Innovation – Energy Conservation

我们采用独立控制的低压潜水泵来代替高压水泵，如此可以节约75%的能量，通过序列和高度控制程序每个水泵的运作，用电量更低。此外还减少了连接管线以及缩小了水泵和喷头之间的距离，从而减少摩擦损失并节约了水景机房的空间及建设费用。另外，采用了DMX简易控制系统， 从而更加高效节能地实现喷泉的多种模式表现。

We use an independently controlled low-pressure submerged pump to replace the high-pressure water pump, which can save 75% of the energy and produce lower power consumption through the sequence and height control program to operate each water pump. In addition, it also reduces the connecting pipeline and the distance between water pump and spray head, thus reducing the friction loss and saving the space and construction cost of the waterscape machine room. In addition, DMX simple control system is adopted, so as to realize multi-mode performance of fountain more efficiently and energy conservation.

▼平面示意图 Plane sketch

▼剖面示意图 Section diagram

水景的设计不仅仅局限于景观表面的喷头布点，水形灯光设计等，同时我们也着力于设计一个高效的喷泉系统。高效的喷泉系统设计可以帮助喷泉运行的稳定，自动化和智能化，大大节约了客户的维护成本和使用的便捷性。

The design of waterscape is not only limited to the layout of spray heads on the landscape surface and the design water-shaped light, but also focused on the design of an efficient fountain system. Efficient fountain system design can help the fountain run stably, automatically and intelligently, which greatly saves the maintenance cost and convenience of customers.

▼水景机房轴测图 Axonometric drawing of waterscape machine room

BIM信息化模型极大地帮助了喷泉施工和信息化管理，也对后期维护维修，物业管理提供了强有力的支撑。

BIM, information model greatly helps fountain construction and information management, and also provides strong support for later maintenance and property management.

▼水景机房透视图 Perspective drawing of waterscape machine room

//下沉花园水景 Waterscape of sunken garden//

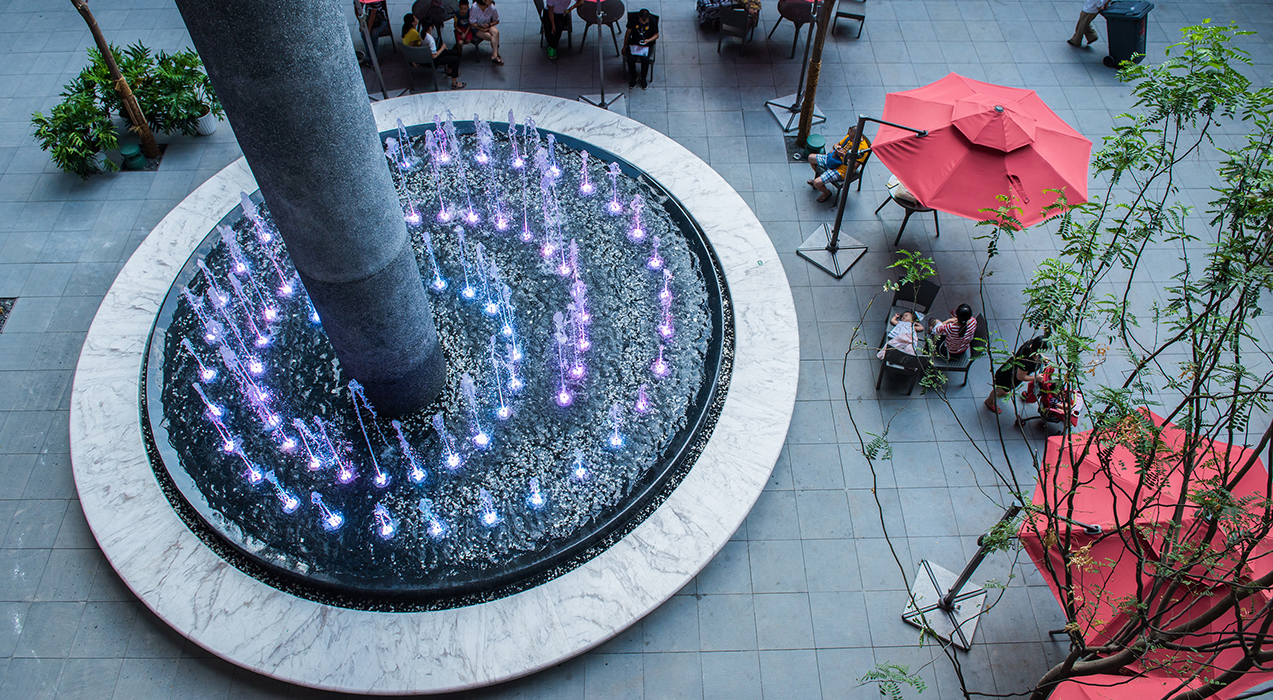

位于广场负一楼，以柱子为核心螺旋布置的直喷喷泉，仿若不断转动的星云。喷泉水形的高低变化为柱廊下的休闲空间增添了更多活力。

Located on the basement of the square, the direct injection fountain with the pillar as its core is like a spinning nebula. The change of fountain shape adds more vitality to the leisure space under the colonnade.

▼俯视图 Bird View

▼平面图 Plan

▼水型示意图 Schematic diagram of water shape

//小内街水景 Waterscape of inner street//

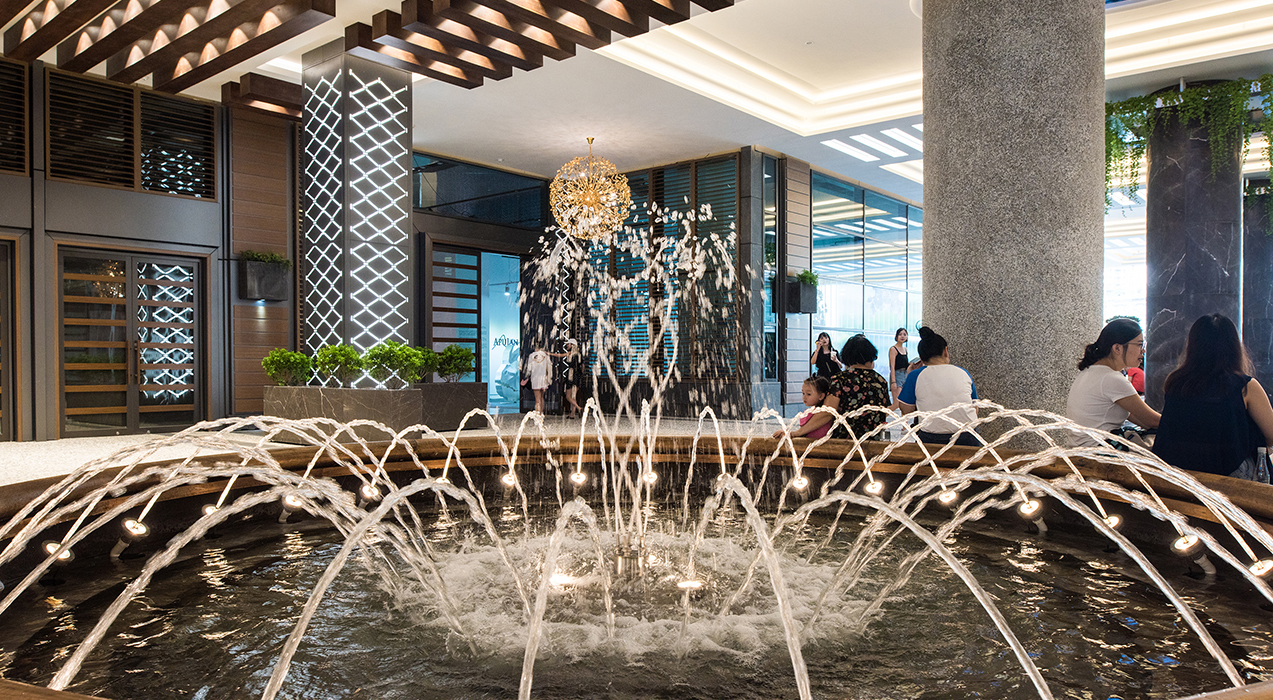

水景位于一楼，为连接交通公交车站，地铁，出租车上下客的最近入口。圆形水池内圈一圈的向心的抛物线泉，配合独立对应的灯光控制，将视线聚集在中心。中心点布置古朴的花篮喷泉，来呼应顶部的绿植吊顶及周边古朴的设计风格。

The waterscape is located on the first floor and is the nearest entrance which connects the bus station, subway and taxi. The centripetal parabolic spring in the inner circle of the circular pool, matched with independent corresponding light control, focuses the line of sight in the center. The central point is decorated with primitive flower basket fountains to echo the green ceiling at the top and the surrounding primitive design style.

▼效果图 Effect Drawing

▼细部 Detail

▼平面图 Plan

▼剖面图 Section Drawing
